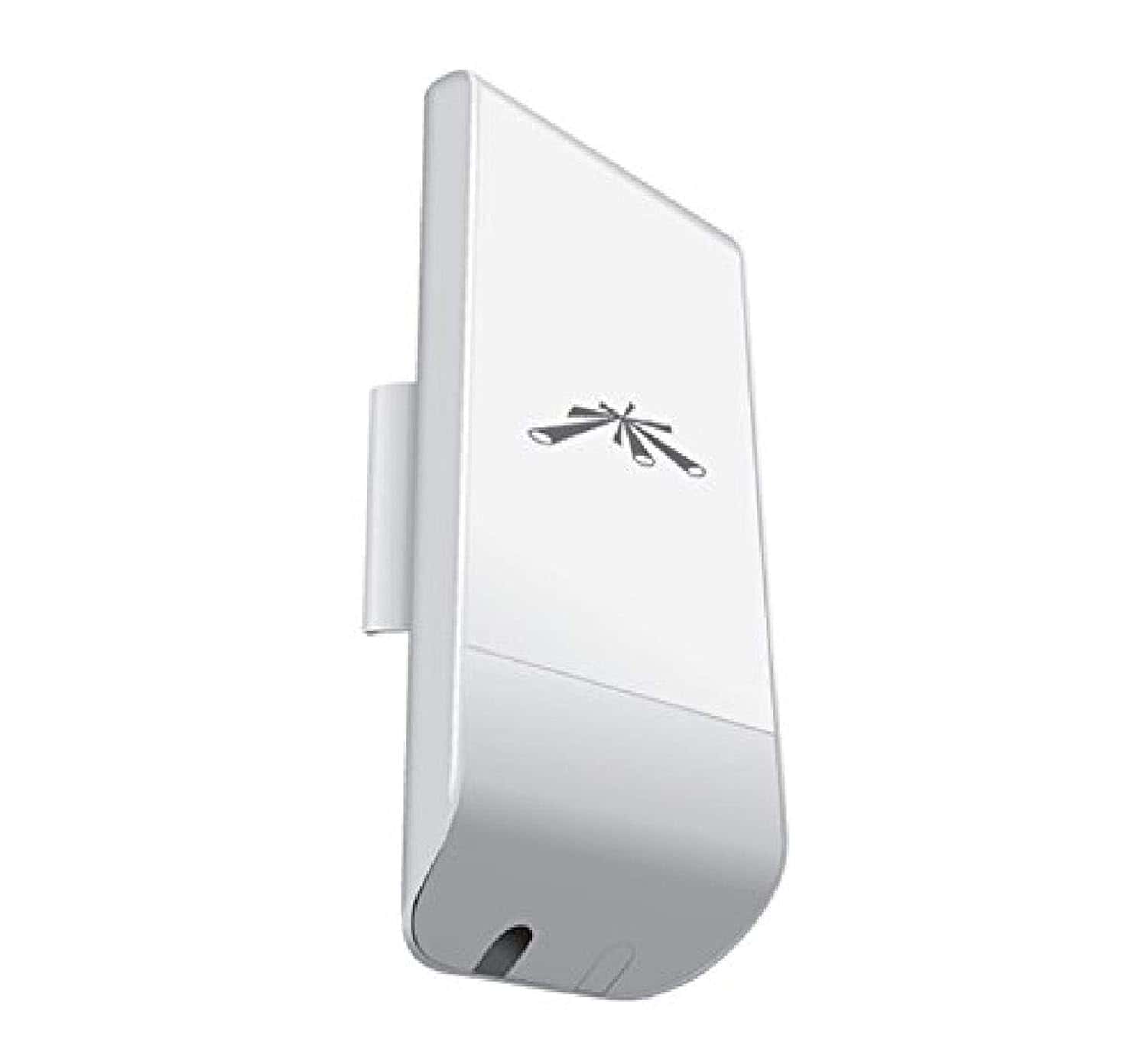

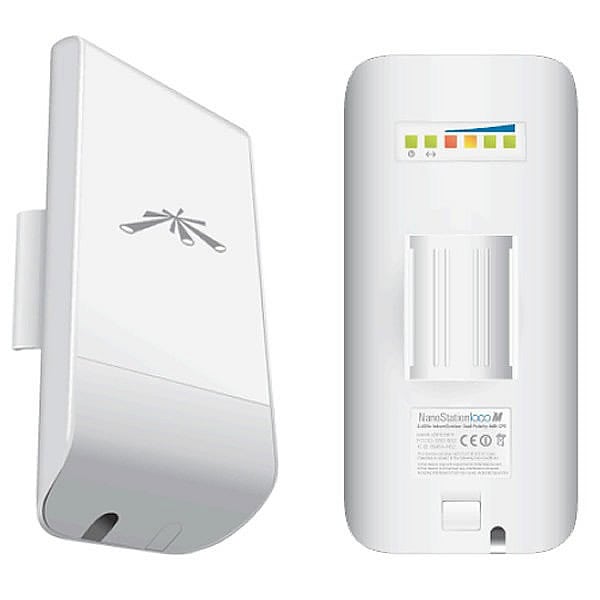

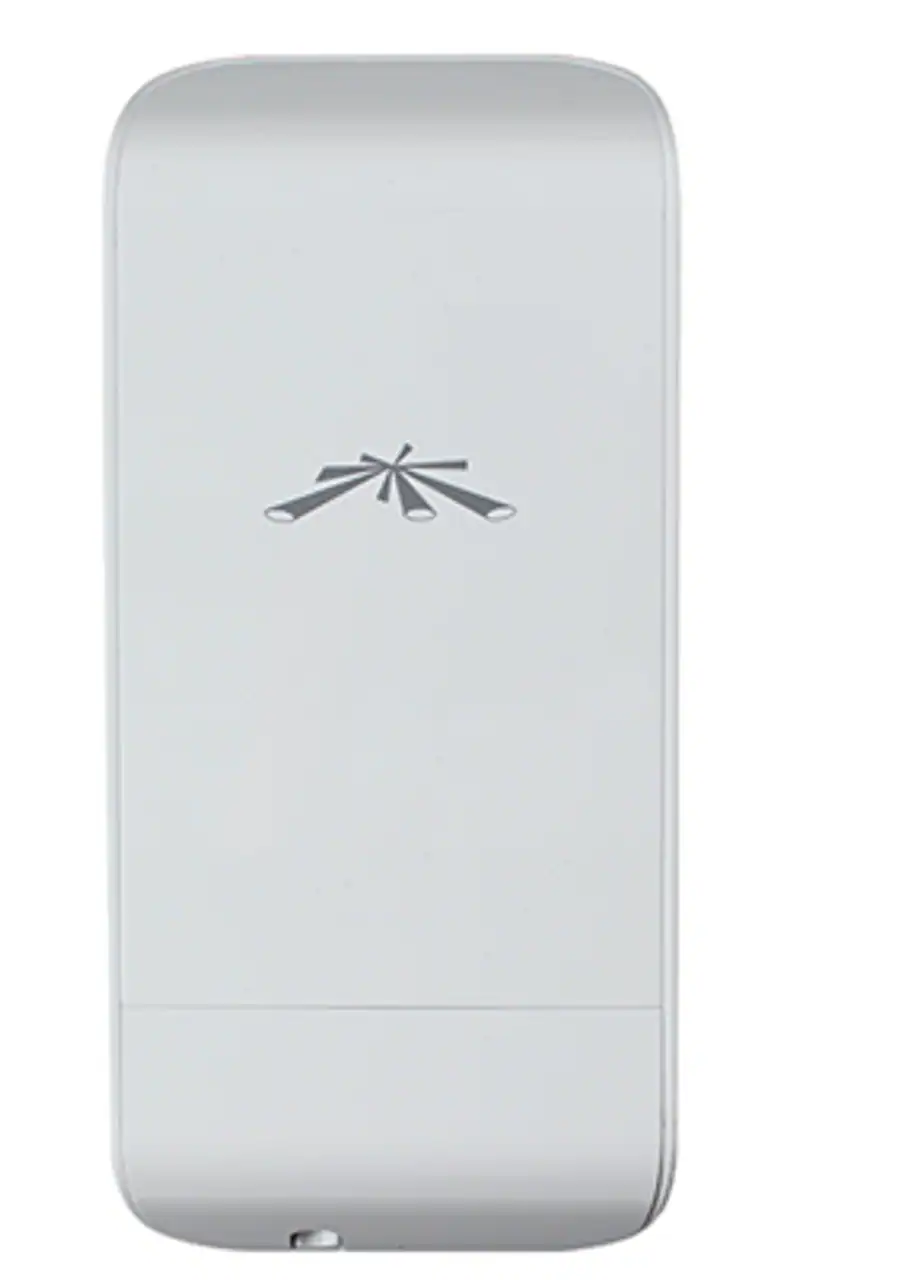

Ubiquiti NanoStation Loco M2 (LOCOM2)

Ubiquiti NanoStation Loco M2 – 2.4GHz Indoor/Outdoor MIMO Wireless Bridge

The Ubiquiti NanoStation Loco M2 is a compact and reliable airMAX® CPE (Customer Premises Equipment) designed for Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) applications. With its integrated antenna, dual-polarity performance, and sleek industrial design, it provides stable long-range wireless connectivity ideal for residential, commercial, and enterprise deployments.

Key Features

• 2.4GHz airMAX Technology:
  Delivers high-speed wireless connectivity in 2.4GHz band for long-range communication.

• Dual-Polarity Antenna:
  Built-in 8dBi MIMO antenna ensures better signal strength and stability.

• Intelligent QoS:
  Prioritizes voice, video, and data traffic for smooth performance.

• Scalable & Flexible:
  Supports PtP and PtMP links with high capacity and low latency.

• Passive PoE Support:
  Powers the unit via 24V PoE adapter with remote reset capability.

• Durable Outdoor Design:
  Weatherproof UV-stabilized plastic enclosure for reliable outdoor operation.

Technical Specifications

Processor: Atheros MIPS 24KC, 400 MHz
Memory: 32 MB SDRAM / 8 MB Flash
Networking Interface: 1 × 10/100 Mbps Ethernet Port (RJ-45)
Frequency Range: 2.3 – 2.5 GHz
Gain: 8 dBi
Polarization: Dual Linear
Beamwidth: 60° (H/V/Elevation)
Power Supply: 24V, 0.5A Passive PoE
Max Power Consumption: 5.5 W
Dimensions: 163 × 31 × 80 mm
Weight: 180 g
Operating Temperature: -30°C to +80°C
Humidity: 5 – 95% (Condensing)
Mounting: Pole mount kit included
Certifications: FCC, IC, CE, RoHS

Performance and Reliability

The NanoStation Loco M2 incorporates Ubiquiti’s airMAX® TDMA protocol, reducing latency and improving throughput across large networks. Its remote PoE reset capability simplifies network management and troubleshooting from a central point.

Ideal Use Cases

• Wireless connectivity between buildings

• Extending Wi-Fi coverage outdoors

• CCTV and IP camera backhaul

• Rural broadband and WISP deployments

Why Choose the Ubiquiti NanoStation Loco M2

• Reliable 2.4GHz wireless bridge for urban and rural applications

• Compact, easy to install, and low power consumption

• Backed by Ubiquiti’s airMAX performance and scalability

Available now at Peejey Smart Kenya — your trusted supplier for Ubiquiti NanoStation Loco M2, Ubiquiti Access Points in Kenya, and Ubiquiti wireless solutions for business, home, and enterprise networks.
